Product Range

Tata Astrum comes in different forms to suit a variety of requirements. It is dispatched either directly from the mills or from one of the many authorized service centers, depending on customer requirements. No matter from where it is dispatched, it conforms toTata Steel's impeccable product quality standards.

The product range includes :

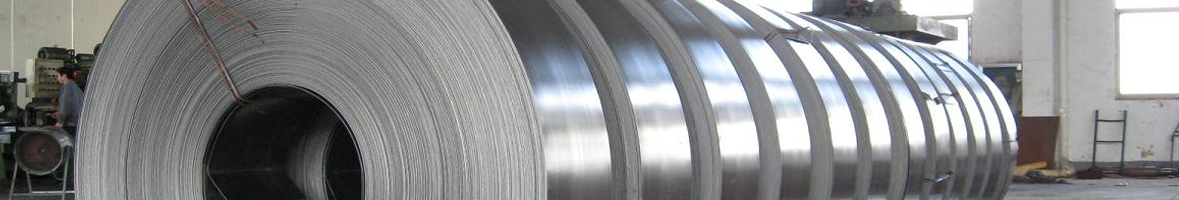

HotRolledCoils (HRC)
Cut to length (CTL)Sheets
SlitCoils
Pickled &Oiled (PO)
SPO(Skin Pass Pickled &Oiled)

TDCorTechnicalDeliveryCondition consists of a set of specificationswhich is guaranteed in the product.

Sl No	TDC	Segment	Ref Grade	Material Form	Thickness Range (in mm)	Width Range (in mm)	HSM	TSCR	Bara (HRPO)	Bara (HRSPO)
1	HR01	Tubes	IS 10748 Gr 1	HR / HRPO	1.6-4.99	900-1680	Yes	Yes	Yes
2	HR02	Sheet Metal components involving Ni / Cr plating	IS 1079DD	HR / HRPO	1.6-12	900-1680	Yes	Yes	Yes
3	HR03	Auto- Structurals	SAPH 440	HR / HRPO	2.5-12	1000-1680	Yes	Yes	Yes
4	HR04	Auto- Structurals	BSK 46	HR	3.5-8	1000-1540	Yes
5	HR05	Fabrication	IS 2062 Gr-A (Non- Peritectic Chemistry)	HR / HRPO	2.00-4.99	900-1680	Yes	Yes	Yes
6	HR06	Railway Coach/Panel/ Roof	IRS M41	HR	5.00 - 12	1100-1500	Yes
7	HR07	Farbrication/ Auto Structrals	IS 2062 Gr-A ( Peritectic Chemistry & capped YS & UTS)	HR	2.51 - 4.99	900 - 1540	Yes
8	HR08	Farbrication /Auto Structrals / Railways	IS 2062 Gr-A (Non- Peritectic Chemistry)	HR / HRPO	5.00 - 12	900-1680	Yes	Yes	Yes
9	HR09	Farm Equipment- Harvestor Combine	IS 10748 Gr 1	HRSPO	1.6-4.5	1000-1270				Yes
10	HR10	Bottom Bracket & Frames for Cycles	IS 10748 Gr 2	HRSPO	1.6-4.5	1000-1270				Yes
11	HR11	BB Cup, Precision tubes, Fork Bracket for Cycles	Tata PT(H)	HR / HRPO	2.00 - 8.00	1000-1540	Yes	Yes	Yes
12	HR12	Compressor Shell	ASTM 622 (MOD)	HRSPO	1.6-4.5	1000-1250				Yes
13	HR13	Cold Rolling	IS 11513 DD	HR	1.6-12	900-1540	Yes
14	HR14	Auto structural / Axle Support	Fe410	HR / HRPO	2.00-4.99	900-1680	Yes	Yes	Yes
15	HR15	Structural / Fabrication	Fe360	HR	1.6-4.99	900-1680	Yes	Yes	Yes
16	HR16	Tubes	IS 10748 Gr 1	HR	5.00-12.00	900-1540	Yes
17	HR17	Sheet Metal components involving Ni/ Cr plating (requiring extra deep draw)	IS 1079 EDD	HR	1.6-6.5	900-1540	Yes		Yes
18	HR18	Farbrication/ Auto Structrals	IS 2062 Gr-B (Non-Peritectic Chemistry)	HR	2.5 - 4.99	900-1680	Yes	Yes
19	HR19	Farbrication/ Auto Structrals	IS 2062 Gr-B (Non-Peritectic Chemistry)	HR	5.00 - 12.00	900 - 1680	Yes	Yes
20	HR20	Farbrication/ Auto Structrals	IS 2062 Gr-A (Peritectic Chemistry & capped YS & UTS)	HR	5.0 - 12.0	900 - 1540	Yes
21	HR21	Tipper body, Buckets for Earth Moving Equipments, PEB	DIN 17000 St52.3 (Non-peritectic chemistry)	HR	5.0 - 12.0	900 - 1680		Yes
22	HR22	Tipper body, Buckets for Earth Moving Equipments, PEB	DIN 17000 St52.3 (Non-peritectic chemistry)	HR	2.0 - 4.99	900 - 1680		Yes
23	HR23	Structurals requiring hot-dip galvanizing	IS 2062 E250 Fe410 (with controlled Si)	HR	5.0 - 12.0	900 - 1540	Yes
24	HR24	Brake shoe assembly / web & rim	Tata Gr-A CFS	HR	2.0 - 4.99	900 - 1540	Yes
25	HR25	Farbrication/ Auto Structrals (Requiring mandatory impact testing value)	IS 2062 E 250 Gr B(0)	HR	5.0-12.0	900 - 1540	Yes
26	HR26	Hi-tensile steel for projects (Thicker)	IS 2062 Gr-A (Non- Peritectic Chemistry)	HR	12.01-16.0	900-1680		Yes
27	HR28	Structurals for telecom / transmission towers	IS 2062 E 350 Fe490 Gr-C	HR	2.0 - 4.99	900 - 1540	Yes

Sl No	Segment	Ref Grade	State of the material	Thickness Range	Width Range	Remarks
1	Cable Trays and Water Tanks, GE items like Bearing housings and Nozzle casings	IS 10748 Gr 1	HR	5-10	900-1540	Pending with FPTG for inputs
2	Structural fabrication (Auto/YG)	St 52.3	HR	2-5	900-1540	Yet to be taken up
3	Structural fabrication (Auto/YG)	St 52.3	HR	5-12	900-1540	Issue of rolling and process parameter design at HSM
4	Structural fabrication (Auto/Projects)	IS 2062 Gr-A	HR	2-2.5	900-1540	Issue of rolling and process parameter design at HSM
5	HRSPO for IS 1079 DD for Cr-Ni plating applications	IS 1079 DD	HRSPO	1.6-12	900-1540	Pending with TG
